Developing the National Usability-Focused Health Information System Scale for Physicians: Validation Study
Background: Problems in the usability of health information systems (HISs) are well acknowledged, but research still lacks a validated questionnaire for measuring and monitoring different dimensions of usability of HISs. Such questionnaires are needed not only for research but also for developing usability of HISs from the viewpoint of end-user experiences.
Objective: This study aimed to develop and test the validity of the questionnaire measuring the National Usability-Focused HIS-Scale (NuHISS) among a nationally representative sample of Finnish physicians.
Methods: We utilized 2 cross-sectional data collected from a random sample of Finnish physicians in 2014 (N=3781; of which 2340 [61.9%] were women) and 2017 (N=4018; of which 2604 [64.8%] were women). Exploratory and confirmatory factor analyses (structural equation modeling [SEM]) were applied to test the structural validity of the NuHISS. As the concurrent validity measure, we used the self-reported overall quality of the electronic health record system (school grade) provided by the participants using marginal structural models.
Results: The exploratory factor analyses with Varimax rotation suggested that the 7-factor solution did offer a good fit to the data in both samples (C2=2136.14 in 2014 and C2=2109.83 in 2017, both P<.001). Moreover, structural equation modelling analyses, using comparative fit index (CFI), Tucker-Lewis Index (TLI), Normed Fit Index (NFI), root mean squared error of approximation (RMSEA), and Standardized Root Mean square Residual (SRMR), showed that the 7-factor solution provided an acceptable fit in both samples (CFI=0.92/0.91, TLI=0.92/0.91, NFI=0.92/0.91, RMSEA=0.048/0.049, and SRMR=0.040/0.039). In addition, concurrent validity of this solution was shown to be acceptable. Ease of use, but also all other dimensions, was especially associated with overall quality reports independent of measured confounders. The 7-factor solution included dimensions of technical quality, information quality, feedback, ease of use, benefits, internal collaboration, and cross-organizational collaboration.
Conclusions: NuHISS provides a useful tool for measuring usability of HISs among physicians and offers a valid measure for monitoring the long-term development of HISs on a large scale. The relative importance of items needs to be assessed against national electronic health policy goals and complemented with items that have remained outside the NuHISS from the questionnaire when appropriate.
J Med Internet Res 2019;21(5):e12875
Problems in usability of health information systems (HISs) are well acknowledged in research . The vast investments in the adoption of HISs in the United States as well as in Europe have been driven by expectations reflecting key usability goals, particularly increased effectiveness and efficiency in health care [ - ]. The clinician community has, while considering electronic health record (EHR) systems as an improvement over the paper-based system, expressed frustration with the level of usability of available systems as well as their support for information exchange [ , ]. Moreover, several studies suggest that HISs may cause stress and frustration to clinicians and this appears to have increased recently [ , ]. If clinicians cannot achieve their goals with efficiency, effectiveness, and satisfaction by using the implemented information systems (ISs), they seek alternative solutions to reach their goals, that is, by using paper to document and transfer health information [ ]. Declining to use is one important indication that the anticipated benefits are not being realized.
Research has shown that with high-quality management and high perceived usability, HISs could yield significant quality and productivity gains . To show evidence of these gains arising from HISs use, appropriate measures need to be used. However, usability is qualitative and multidimensional by nature, thereby challenging the measuring [ ] and thereby accumulation of results [ ] on a larger scale. Depending on the definition used, the attributes and metrics of measurement have varied [ - ]. The widely known definition for usability is defined by the International Organization for Standardization (ISO) standard as follows: “usability refers to an extent to which a system, product or service can be used by specified users to achieve specific goals with effectiveness, efficiency and satisfaction in a specified context of use” [ ]. The possible measures for each of these 3 aspects of usability are many. On the basis of a review of practices in measuring usability by Hornbæk [ ], the challenges include, for example, distinguishing and empirically comparing subjective and objective measures of usability, studying long-term use and usability, extending measures of satisfaction beyond postuse questionnaire, validating and standardizing the host of subjective satisfaction questionnaires used, and studying correlations between usability measures as a means for validation. Alongside with usability, user experience (UX) as a concept has gained interest and is described as a person’s perceptions and responses resulting from the use or anticipated use of a product, system, or service [ ]. According to the ISO standard [ ], usability criteria can be used to assess aspects of UX as well.
Although governments have pushed the adoption of electronic Health (eHealth) systems and services, they have often lacked knowledge of longer term and larger scale eHealth usability and UX in health care contexts. Both the Organisation for Economic Co-operation and Development (OECD) and European Union (EU) have included information and communication technology (ICT) benchmarking as one of the issues on their policy agendas [, ]; however, current HIS monitoring on a national level focuses on availability and usage rate of key functionalities of EHRs, personal health record (PHR) systems, health information exchange (HIE), and telemedicine [ - ]. Some HIS-related health care output or efficiency indicators (eg, number of visits saved, impact on length of stay, time saved by system use, and cost saved by system use) have also been defined [ ] but rarely used in systematic, large-scale eHealth monitoring.
Validated usability questionnaires (eg, Software Usability Measurement Inventory (SUMI) , System Usability Scale (SUS) [ ], and Questionnaire for User Interaction Satisfaction (QUIS) [ ]) are context and domain independent and focus on evaluating the usability of user interfaces typically after usability testing. Our aim was to study and monitor longer-term experiences on usability and experienced outcomes of complex HISs from the viewpoint of physicians and their clinical tasks in specific contexts of clinical work. In addition, we aimed at addressing the development of the EHR systems. SUMI, SUS, or QUIS questions were therefore not as such regarded suitable as repeated measures of perceived usability of HISs on a national level.
The large-scale eHealth monitoring tools developed by the EU and OECD [, ] include indicators for availability of key HIS functionalities and information contents, for example, documentation and retrieval of patient data, availability of patient summary data, and medication list. They do not cover end-users’ experiences on usability or experienced benefits of these functionalities or information contents.
The DeLone and McLean ISs success model that was developed in 1992 and revised in 2003 [, ] is based on vast theoretical and empirical IS research with validation and updates. It has been used in over 30 scientific publications and, more importantly, also applied on a national level in the health care context in the Canada Health Infoway evaluation framework for HISs [ , - ]. The original model and its application in the eHealth evaluation framework in Canada offer 6 interrelated dimensions on IS success: (1) System quality, (2) Information quality, (3) Service quality, (4) Use, (5) User satisfaction, and (6) Benefits. The framework does not list specific items or measures. The subareas are not specific to key functionalities and information contents needed in clinical work.
The Finnish eHealth strategy from 2015 listed a national-level eHealth usability survey as one strategic means to reach the strategy objectives . In 2012, Nordic eHealth research network was established under the Nordic Council of Ministers to develop common Nordic eHealth indicators. The Finnish HIS usability-focused questionnaire for physicians was adopted in Iceland and Denmark in 2018. The OECD is also following work by the Nordic countries on common eHealth indicators for countries with advanced national ICT infrastructures [ ].
The need to collect national-level evidence on usability and UXs of HISs in health care contexts to steer national eHealth policies and implementation coupled with the lack of suitable measures led to development of the Finnish EHR systems as tools for physicians questionnaire and within it, the National Usability-Focused HIS Scale (NuHISS) for physicians in 2009. The development team consisted of 2 physician-researchers, 1 usability researcher, and 2 researchers with experience in sociology of technology and national benchmarking studies. The first questionnaire for physicians with NuHISS was conducted in 2010, before implementation of the first national eHealth service—ePrescription. The second data collection round in 2014 was timed so that the national ePrescription service was in full use in the public sector and implementation of the national patient data repository (Kanta) was to begin. In 2017, the data collection was repeated for physicians for the third time and also extended to cover the nurses. The data collection was timed so that the Kanta system was in full use in Finland. The Ministry of Social Affairs and Health has agreed to fund the next data collection round in 2020, extending it further to social workers and asking for a plan beyond 2020.
Establishing the Finnish questionnaire containing the NuHISS as a regular source of evidence for steering national eHealth policies as well as increased international attention about the Finnish questionnaire has added pressure for validation of the key measures used for usability. Thus, the objective of this study was to develop a valid and reliable measure of NuHISS for physicians. The research questions were as follows:
- What are the most important dimensions of usability and UXs of HISs that the NuHISS for physicians should measure?
- Does the developed NuHISS show acceptable construct validity (do the selected survey items measure their corresponding dimension and can the dimensions be separated from each other) and concurrent validity (do the dimensions have associations to other factors, such as quality ratings, that they theoretically should) of the scale?
The Survey and Data Used to Validate the Usability-Focused HIS Scale
The Survey Population
This report is based on the data collected from a random sample of Finnish physicians at 2 data collection points (2 cross-sectional samples) in 2014 (N=18,257) and 2017 (N=18,326). The response rates were 21% in 2014 and 22% in 2017 providing analytic samples of 3781 in 2014 and 4018 in 2017 [, ]. Owing to missing values in a part of the variables, we imputed both datasets (missing pattern of both the samples is reported in the ). We used the multiple imputation method with chained equations using Mice R-package. We generated 5 separate imputed datasets for analyses purposes. The study has been approved by the Finnish National Institute for Health and Welfare Ethics Board.
The Survey Questionnaire
Key EHR, HIE, and PHR functionalities and information needed by physicians in everyday clinical work (eg, documentation, viewing and retrieval of patient data, medication list, decision support, HIE, and patient-provided data) were used as a starting point of the questionnaire; see the OECD model survey The OECD Guide for Measuring ICTs in the Health Sector [, ]). The questions were grounded in physicians’ key HIS use tasks to increase face validity of the questions and to increase comparability with HIS availability monitoring (including the OECD model survey). The usability-focused questions (including aspects of stability, reaction speed, ease-of-use, recovery from errors, learnability, availability, information quality, and utility of information as well as effects) were modified based on the Finnish Medical Association’s information technology (IT)-physicians’ listing of key strengths and weaknesses of their HIS, as well as a comprehensive analysis of existing usability constructs [eg, - , - , , ]. The full questionnaire included 17 background questions, 41 usability-focused items, a list of 17 most urgent EHR development needs to select from, a list of 15 best functioning EHR features to select from, and a 9-item module measuring HIS-related well-being. For manager-level physicians, there was an additional 11-item module measuring HIS support for management.
The Usability-Focused HIS-Scale Items Used
Of the 41 usability-focused items, 32 items that were identical in the 2014 and 2017 questionnaires were selected for the NuHISS to measure physicians’ experiences on usability and benefits of HISs. The scale items are depicted in.
Items Used for Concurrent Validity Evaluation
As the concurrent validity measure of the dimensions of our construct, we selected the self-reported overall quality of the EHR system (school grade) provided by the participants. The overall quality was rated by a continuous scale from 4=very poor to 10=excellent. The scale was dichotomized into low (7 or less) and high (more than 7) quality estimates. In 2014, 1095 of 3781 respondents (29%) and in 2017 altogether 1323 of 4018 respondents (33%) rated the system they used as a high-quality system.
In the concurrent validity analyses, gender, the year of birth, work tenure (in years), and whether the respondent was specialized (yes/no) were used as time independent covariates and overall system quality (measured by school grade given to the system) as the outcome variable ().
|Short name||Questionnaire item (with 5-point Likert scale: 1=fully disagree, 5=fully agree)|
|Logic||The arrangement of fields and functions is logical on computer screen|
|Terminology||Terminology on the screen is clear and understandable (eg, titles and labels)|
|Documenting||Entering and documenting patient data is quick, easy, and smooth|
|Operating info||The systems keep me clearly informed about what it is doing (eg, saving data)|
|Straightforward tasks||Routine tasks can be performed in a straight forward manner without the need for extra steps using the system|
|Needed patient data||It is easy to obtain necessary patient information using the EHRa system|
|Nursing record||The information on the nursing record is in easily readable format|
|Stability||The systems are stable in terms of technical functionality (does not crash and no downtime)|
|System errors||Faulty system function has caused or has nearly caused a serious adverse event for the patient|
|Reaction speed||The system responds quickly to inputs|
|Unexpected actions||In my view, the system frequently behaves in unexpected or strange ways|
|Missing info||Information entered/documented occasionally disappears from the ISb|
|Medic list quality||The patient’s current medication list is presented in a clear format|
|Summary view||The EHR system generates a summary view (eg, on a timeline) that helps to develop an overall picture of the patients’ health status|
|Order completion||The system monitors and notifies when the orders given to nurses have been completed|
|Patient-provided info||Measurement results provided electronically by the patient (eg, via patient portal) help to improve the quality of care|
|Collaboration||EHR systems support cooperation and communication between physicians and patients|
|Suggestion implementation||The system supplier implements suggested corrections and amendments as wished|
|Vendor interest||The system supplier is interested in feedback from users|
|Implementation speed||Suggestions for corrections and amendments are implemented sufficiently quickly|
|Care quality||ISs help to improve quality of care|
|Care continuity||ISs help to ensure continuity of care|
|Guideline adherence||ISs support compliance and adherence with the treatment recommendations|
|Medication errors||ISs help in preventing errors and mistakes associated with medications|
|Duplicate tests||ISs help to avoid duplicate tests and examinations|
|Care needs and impacts||The EHR system provides me with information about the need for and effectiveness of treatment of my patients|
|HIEc medication||Information on medications ordered in other organizations is easily available|
|HIE speed||Obtaining patient information from another organization often takes too much time|
|HIE data quality||Patient data (also from other organizations) are comprehensive, up-to-date, and reliable|
|HIE collaboration||EHR systems support cooperation and communication between physicians working in different organizations|
|Professionals collaboration||EHR systems support cooperation and communication between physicians and nurses|
|Physician collaboration||EHR systems support cooperation and communication between physicians in your own organization|
aEHR: electronic health record.
bIS: information system.
cHIE: health information exchange.
|Variable||Year of data collection|
|Target population, n||16,350||17,210|
|Questionnaire sent (target population), %||91||93|
|Mean (SD)||1.62 (0.49)||1.65 (0.48)|
|Age (years), %|
|Year of birth, mean||1966||1969|
|Not specialized (1), %||33.1||32.6|
|Specialized (2), %||66.9||67.4|
|Mean (SD)||1.33 (0.47)||1.33 (0.47)|
|Work tenure (experience, years)|
|Mean (SD)||19.63 (11.42)||19.71 (11.48)|
|School grade given to the primaryelectronic health recordsystem|
|Mean (SD)||6.64 (1.27)||6.82 (1.23)|
Statistical Analyses Assessing Sample Differences
Means and SDs of the NuHISS items for the 2 time points (2014 and 2017) were calculated and Welch 2-sample t test was used to analyze the differences in the mean profile of the responses from the 2 time points. Following the research questions and established psychometric testing procedures we tested the validity of the NuHISS in 2 steps: (1) structural validity test (do the intended dimensions or latent variables explain the covariance of the corresponding items) showing whether the scale measures the defined dimensions and (2) concurrent validity test (are the dimensions associated with the factors they should be associated with).
Assessing Construct Validity of the NuHISS Scale Dimensions
The preliminary structural analyses were conducted by calculating bivariate correlations between the 32 study variables in the 2014 and then in the 2017 data. For grouping the NuHISS scale items into dimensions, we then tested the factor structure and number of dimensions using exploratory factor analyses with eigenvalue 1 and loading structure as a criterion for the appropriate number of factors. The factorial validity of the original scales was tested separately among the 2 samples (time points 2014 and 2017) with exploratory factor analyses (Varimax rotation; ) and then structural equation modeling (SEM; confirmatory factor analyses).
Second, we tested the structure using SEM  that offers more stringent testing and allowing items to be loaded only to their corresponding latent variables (factors). SEM is a multivariate statistical analysis technique. This technique is a combination of factor analysis and multiple regression analysis, and it is used to analyze the structural relationship between measured variables and latent constructs. Goodness-of-fit of the SEM models was evaluated based on the chi-square test (X2), RMSEA, CFI, TLI, and Akaike’s information criterion (AIC). A nonsignificant chi-square value indicates that the model is a good fit to the data. RMSEA values of less than .05 and .08 suggest a good and reasonable fit, respectively. For CFI and TLI, values above .90 and .95 represent an acceptable and a good fit, respectively. AIC is a measure used to compare any models that have the same set of variables. In such cases, the model with the smaller value of AIC will be preferred [ ]. Testing the final structure was done in 3 steps. First, a 1-factor model was estimated where all remaining items were loaded on the same underlying dimension (null model). In the second step, a model representing the original theoretical model was estimated, and, in the final step, the structural invariance (test showing whether the structure can be considered as similar between 2 measurement points) was tested between 2 samples as strong/scalar invariance with factor loadings and intercepts constrained to be similar. Again the same fit indexes were used as in the overall SEM test.
As a final step for structural validation, we assessed internal consistency of each dimension using Cronbach alpha reliability coefficient. The closer Cronbach alpha coefficient is to 1.0, the greater the internal consistency of the items in the dimension.
Assessing Concurrent Validity of the Scale Dimensions
Concurrent validity is the extent to which one measurement is backed up by a related measurement obtained at about the same point in time. In testing, the validity of results obtained from one test (in this case ease of use) can often be assessed by comparison with a separate but related measurement (in this case, school grade given to the system) collected at the same point in time . Concurrent validity was tested separately for each dimension of the EHR system with the overall quality (measured by school grade given to the system) evaluation as the criteria. The associations between overall quality evaluation and each dimension were tested using the marginal structural model (MSM) approach proposed by Robins et al [ , ], with inverse probability weights taking into account the effects of potential covariates. The approach produces a pseudopopulation with balance in all included covariates.
Statistical programming language R (version 3.5.1)/R-studio and multiple statistical R-packages (psych, psycho, missForest, mice, miceadds, ggplot2, resahpe2, lavaan, semPlot, semTools, ipw, sandwich, and survey) were used for the statistical analyses.
Differences of Samples From the 2 Time Points
Means and SDs of the measured items in 2014 and 2017 are presented in. There were some differences between time points especially in HIE medication (information on medication prescribed in other organizations is easily accessible), duplicate tests (ISs help prevent overlapping examinations), care needs and impacts (IS provides me information on the need and efficiency of care), and B2C collaboration (ISs support collaboration between physicians and patients). The mean profiles were, however, relatively similar: Overall correlations between samples were 0.97, suggesting that the means were very similar between time points. The Welch 2-Sample t test suggested that the difference of the overall means between samples (in 2014, mean 3.28; in 2017, mean 3.27; difference=0.016) was not significant (t(7757.06)=1.14; 95% CI [–0.012 to 0.044]; P>.10).
Construct Validity of the NuHISS Scale
Correlation matrixes in both samples are presented inand . In 2014 data, items around dimension that we named technical quality show strong mutual correlations in both years, also correlating especially with most of the relatively strongly mutually correlating items in dimension that we named ease of use. Ease of use items also correlate with the dimension named benefit. Items in the dimension that we named cross-organization collaboration also cluster together, but with less significant correlations (lighter color) and correlations also with internal collaboration, ease of use, and benefits items. Items in the feedback dimension show strongest between-item correlation, represented by the darkest color, without strong external correlations. Items in the info quality dimension do not cluster together so clearly. Benefit dimension items correlate clearly with each other. The 2 internal collaboration items correlate with each other and also with some of ease of use and cross-organization collaboration items.
In the 2017 data, the clearest item-to-item correlations are within the feedback dimension items. In addition, ease of use items, technical quality items, internal collaboration items, and most of benefits dimension items show clear item-to-item correlations. Cross-organizational collaboration items show clearer within-item correlations in 2017 than in 2014 data.
Scale Structure and Reliability Testing

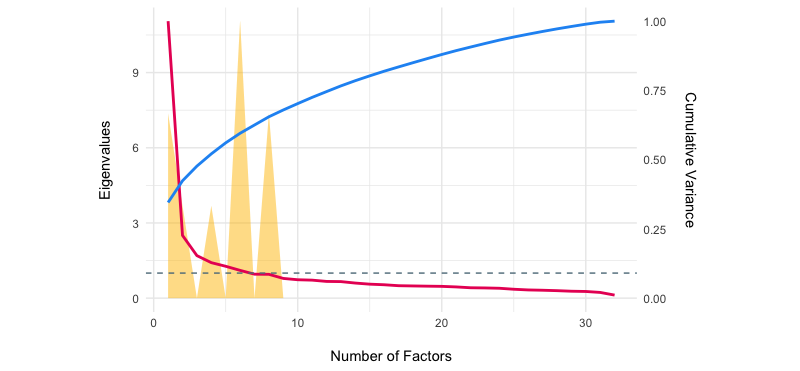

The exploratory factor analyses with Varimax rotation suggested that the 7-factor solution did offer a good fit to the data in both samples (test of the hypothesis that 7 factors are sufficient, X2293=2136.14 in 2014 and X2293=2109.83 in 2017, both P<.001, see alsoand ). However, in both samples the choice of 6 factor was supported by 2 (out of 9; 22.22%) methods (Optimal Coordinates and Parallel Analysis) and the choice of 8 factor was supported by 2 (out of 9; 22.22%) methods (Bayesian information criterion [BIC] and Sample Size Adjusted BIC).
In SEM analyses, the null model (without predicted structure) did not provide an acceptable fit to the data in 2014 (CFI=0.64, TLI=0.62, NFI=0.64, RMSEA=0.100, and SRMR=0.081) or in 2017 (CFI=0.66, TLI=0.64, NFI=0.66, RMSEA=0.094, and SRMR=0.074). The original 7-factor solution, however, provided an acceptable fit in both samples (CFI=0.92/0.91, TLI=0.92/0.91, NFI=0.92/0.91, RMSEA=0.048/0.049, and SRMR=0.040/0.039). The final solutions are presented inand .
The strongest 2 factors (measured by the loadings of items) were feedback and internal collaboration—in both years all the item loadings were over 0.7. All items in ease of use, technical quality, and benefits—factors had factor loadings over 0.5 both years. The weakest factor loadings in 2017 were in information quality factor (0.38 in 2014 for Patient-provided information item, 0.45/0.49 for Medication list quality item, and 0.47/0.56 for Order completion item in 2014/2017). In addition, cross-organizational collaboration factor loading for 1 item remained under 0.5 in 2017 (0.44 for HIE speed item). In addition, the internal reliability of the final factors (assessed with alpha coefficients) in the 2014/2017 data shows that the first 4 factors were the strongest:
- Factor 1 ease of use (alpha=.87/.86).
- Factor 2 technical quality (alpha=.82/.80).
- Factor 3 benefits (alpha=.85/.81).
- Factor 4 feedback (alpha=.88/.88).
- Factor 5 cross-organizational collaboration (alpha=.69/.64).
- Factor 6 information quality (alpha=.61/.62).
- Factor 7 internal collaboration (alpha=.70/.69).
As the test of structural consistency, we performed the measurement invariance test that assesses the psychometric equivalence of a construct across groups or across time . Results suggest that the final measure provided only minimal invariance between samples. The sequential tests are reported in . This was expected, because the fit of the final 7-factor solution was relatively modest.
|Invariance tests steps||Df||Akaike’s information criterion||Bayesian information criterion||Chi-square||Chi-square difference||Df difference||P-difference (>chi-square)|
Concurrent Validity of the Scale Items
In the weighted sample, the covariates had a balanced distribution between those who evaluated the overall quality of the system (school grade) low and high in both measurement years (and ). The distribution suggests that the MSM fits relatively well and is effective in balancing covariates across Overall system quality (school grade) evaluation sequences ( ).
|Variable||0 (school grade low; n=3780.96a), mean (SD)||1 (school grade high; n=3781.33a), mean (SD)||Standardized mean difference|
|Gender||1.62 (0.49)||1.62 (0.49)||0.007|
|Year of birth||1966.24 (10.93)||1966.22 (10.84)||0.002|
|Tenure||19.85 (11.46)||19.86 (11.33)||0.001|
|Specialized||1.33 (0.47)||1.33 (0.47)||0.003|
an refers to pseudopopulation samples from inverse probability weighting.
|Variable||0 (school grade low); n=4018.24a)||1 (school grade high; n=4017.07)||Standardized mean difference|
|Gender, mean (SD)||1.65 (0.48)||1.65 (0.48)||0.001|
|Year of birth, mean (SD)||1969.24 (11.16)||1969.21 (10.83)||0.003|
|Tenure, mean (SD)||19.74 (11.60)||19.77 (11.26)||0.003|
|Specialized, mean (SD)||1.33 (0.47)||1.32 (0.47)||0.002|
an refers to pseudopopulation samples from inverse probability weighting.
|Factor||Odds ratio||95% CI|
|Ease-of-use||0.29||0.28 to 0.31|
|Technical quality||0.36||0.34 to 0.38|
|Benefits||0.49||0.46 to 0.52|
|Feedback||0.44||0.42 to 0.48|
|Cross-organizational collaboration||0.59||0.56 to 0.62|
|Information quality||0.58||0.55 to 0.60|
|Internal collaboration||0.49||0.46 to 0.52|
|Ease-of-use||0.34||0.32 to 0.36|
|Technical quality||0.39||0.37 to 0.41|
|Benefits||0.55||0.52 to 0.58|
|Feedback||0.48||0.45 to 0.51|
|Cross-organizational collaboration||0.60||0.57 to 0.63|
|Information quality||0.58||0.55 to 0.60|
|Internal collaboration||0.54||0.51 to 0.57|
The Validated NuHISS Scale
The study resulted in a validated scale including 7 dimensions: the technical quality dimension measures reliability and safety aspects of the EHR system, including 5 items. The 5 items in the information quality dimension reflect availability and format of key information types of the EHR system. Information quality measures for the HIE functionality are included in the cross-organizational collaboration dimension. The feedback dimension measures responsiveness of the EHR system vendor to improvement suggestions including 3 items. The ease of use dimension consists of 7 items related to the key functionalities of the EHR system (including reading, documenting, and patient data retrieval). The benefit dimension covers 6 items measuring UX on overall benefits of HISs. The internal collaboration dimension with its 2 measures is actually a specific benefit that measures how well the EHR system supports cooperation and communication between professionals within their own organization. Cross-organizational collaboration dimension is another specific benefit dimension with 4 measures on systems support cooperation and communication among professionals in different organizations (focusing on HIE functionalities). Loadings of each of the measures show the strongest and weakest measures within each dimension ().
|Dimension (reliability 2014/2017) and short name||Item on the questionnaire (with 5-point Likert scale: 1=fully disagree, 5=fully agree)||Factor loading 2014/2017|
|Technical quality (alpha=.82/.80)|
|Stability||The systems are stable in terms of technical functionality (does not crash, no downtime)||0.76/0.76|
|System errors||Faulty system function has caused or has nearly caused a serious adverse event for the patient||0.65/0.63|
|Reaction speed||The system responds quickly to inputs||0.77/0.76|
|Unexpected actions||In my view, the system frequently behaves in unexpected or strange ways||0.69/0.65|
|Missing info||Information entered/documented occasionally disappears from the IS||0.56/0.55|
|Information quality (alpha=.61/.62)|
|Medic list quality||The patient’s current medication list is presented in a clear format||0.45/0.49|
|Summary view||The EHR system generates a summary view (eg, on a timeline) that helps to develop an overall picture of the patient’s health status||0.56/0.5|
|Order completion||The system monitors and notifies when the orders given to nurses have been completed||0.47/0.56|
|Patient-provided info||Measurement results provided electronically by the patient (eg, via patient portal) help to improve the quality of care||0.40/0.38|
|B2C collaboration||EHR systems support co-operation and communication between physicians and patients||0.54/0.53|
|Suggestion implementation||The system supplier implements suggested corrections and amendments as wished||0.93/0.93|
|Vendor interest||The system supplier is interested in feedback from users||0.78/0.78|
|Implementation speed||Suggestions for corrections and amendments are implemented sufficiently quickly||0.83/0.84|
|Ease of use (alpha=.87/.86)|
|Logic||The arrangement of fields and functions is logical on computer screen||0.75/0.72|
|Terminology||Terminology on the screen is clear and understandable (eg, titles and labels)||0.71/0.68|
|Documenting||Entering and documenting patient data is quick, easy and smooth||0.77/0.75|
|Operating info||The systems keep me clearly informed about what it is doing (eg, saving data)||0.69/0.66|
|Straightforward tasks||Routine tasks can be performed in a straight forward manner without the need for extra steps using the system||0.75/0.72|
|Needed patient data||It is easy to obtain necessary patient information using the EHR system||0.68/0.7|
|Nursing record||The information on the nursing record is in easily readable format||0.59/0.6|
|Care quality||ISs help to improve quality of care||0.83/0.79|
|Care continuity||ISs help to ensure continuity of care||0.74/0.73|
|Guideline adherence||ISs support compliance and adherence with the treatment recommendations||0.7/0.66|
|Medication errors||ISs help in preventing errors and mistakes associated with medications||0.6/0.58|
|Duplicate tests||ISs help to avoid duplicate tests and examinations||0.62/0.59|
|Care needs and impacts||The EHR system provides me with information about the need for and effectiveness of treatment of my patients||0.72/0.51|
|Cross-organizational collaboration (alpha=.69/.64)|
|HIE medication||Information on medications ordered in other organizations is easily available||0.6/0.51|
|HIE speed||Obtaining patient information from another organization often takes too much time||0.48/0.44|
|HIE data quality||Patient data (also from other organizations) are comprehensive, up-to-date and reliable||0.63/0.63|
|HIE collaboration||EHR systems support co-operation and communication between physicians working in different organizations||0.66/0.63|
|Internal collaboration (alpha=.70/.69)|
|Professionals collaboration||EHR systems support co-operation and communication Between physicians and nurses||0.71/0.73|
|Physician collaboration||EHR systems support co-operation and communication Between physicians in your own organization||0.75/0.72|
The main aim of this study was to develop and test the validity of the questionnaire measuring NuHISS among a nationally representative sample of Finnish physicians. The exploratory factor analyses showed that the 7-factor solution did offer a good fit to the data and SEM analyses showed that it provided an acceptable fit. Moreover, concurrent validity of this solution was shown to be acceptable. The 7-factor solution included technical quality, information quality, feedback, ease of use, benefits, internal collaboration, and cross-organizational collaboration dimensions. Our results show that NuHISS provides a useful tool for measuring the usability of HISs among physicians and offers a valid measure for monitoring the long-term development of HISs on a large scale.
Differences of Samples
Overall correlations between the 2 samples suggested that the means were very similar between time points. The Welch 2-Sample t test verified that the difference was not significant. This generated a good basis for validation of the scale.
Validity and Reliability of the Scale
Construct validity—the degree to which a test measures what it claims to be measuring—was supported by correlation analysis, which revealed the items clustering together, although correlations for some clusters were stronger and for some others weaker and more dispersed. The underlying components were analyzed using factor analysis—principal components analysis (PCA) for data collected with the same scale in 2 time points. PCA led to a 32-item 7-component solution with 65% of the total variance explained in 2014 and 63% in 2017. In confirmatory factor analyses, the original 7-factor solution provided an acceptable, although modest, fit in both samples. Component or factor loadings revealed that the highest loadings were for all items in the feedback factor and many items in the technical quality, ease of use, benefits, and internal collaboration factors. The information quality factor had overall the lowest loadings.
Internal consistency of factors was assessed by reliability (Cronbach alpha). Reliability of all factors exceeded .60, with the highest alphas in feedback (over .80), ease of use, and benefit factors. The information quality factor was the weakest in both years (.61/.62). Cross-organizational collaboration reliability was also below .70 in both years.
Concurrent validity measures the extent to which results correspond to those of a previously established measurement of the construct. The covariates had a balanced distribution between those who evaluated the overall quality of the system (school grade) low and high in both measurement years, suggesting that the MSM fits relatively well and is effective in balancing covariates across quality evaluation sequences.
Comparison of NuHISS and IS Success Model
The final 7-factor solution was compared with IS success model dimensions and items (Canada Infoway 2012 version,). NuHISS covered all but one of the IS success model dimensions (Use) and most of the key subareas. The IS success model dimension of Use was out of the scope of our survey (Availability and Usage rate are assessed in Finland with a separate survey to health care providers). In addition, the items were grouped in a slightly different manner. compares the 2 scales, where black font shows the actual items for each factor or dimension and gray font location of the item, if different in the scales.
The comparison shows that overall, the NuHISS-scale items are more grounded to the physician work and more detailed than the IS success model items. The NuHISS scale has a more focused technical quality factor than the IS success model System Quality dimension. In addition to similar items, the latter includes items that fell into NuHISS ease of use and benefits factors. NuHISS has a dedicated item for ease of use, whereas in the IS success model, corresponding items are listed under system quality and information quality dimensions. NuHISS benefits factor and collaboration factors correspond to IS success model user satisfaction and information quality dimensions. NuHISS has specific factors for cross-organizational and internal collaboration, unlike the IS success model. NuHISS does not include a Service quality factor, although the full questionnaire contains these items.
On the basis of this comparison, service quality factor is a potential new factor to be added in the scale in future. In addition, information quality factor has the clearest improvement needs based on the weakest reliability and factor loadings.
Strengths and Limitations
The face validity of our questionnaire is good: experts (physicians using the different HISs in their everyday work) have participated in generating the questionnaire and questions were grounded to the core IT functionalities and information contents needed by physicians. The physicians have evaluated the importance of questions from the viewpoint of actual end-users and long-term use of the systems in clinical environments. The surveys have also been pilot tested on both occasions (before sending out the 2014 and 2017 surveys) on a subset of the intended population. The scale offers a valid tool for measuring usability of HISs among professionals and adds substantially to previous scales such as those focusing on measuring usability, acceptability, and user satisfaction of mobile apps among clients [- ].
However, the questionnaire may have shortcomings typical to questionnaire-based surveys: it may include questions that are understood differently by different respondents, depending on the experience they have had with different systems and other individual factors. Although trying to use the language familiar to practicing physicians, we have also been obliged to use terminology from user interface and interaction design fields, such as label, input, or screen. In addition, we used the term EHR in instances where questions were particularly focused on the respondents’ main EHR system, and ISs in instances where questions focused not only on EHRs but also related specialty-specific regional or national ISs or patient-provided data (either via the EHR or via standalone systems). The wording aimed at relieving respondents from knowing the particulars of system integration, but may have also confused some respondents. As the clinical ICT system environments often include several systems, which are used simultaneously, it is not always clear for the physicians which functionalities and features are related to EHR systems and which to other IT systems.
The total number of respondents in both surveys was about 4000. Response rates remained relatively low (21% to 22%). A small proportion of this is due to the sampling method: We targeted the survey to all physicians in clinical work. The Finnish Medical association’s membership register did not allow us to select only physicians in clinical work into the target population. Therefore, the questionnaires were sent to all working aged physicians (ie, to a larger target population, with a cover letter calling for responses from physicians in clinical work). Calculation of the response rate was carried out from the sent questionnaires, which included physicians not in clinical work. Comparison of the respondents with the target population in 2014  and 2017 [ ] showed good representativeness of samples in both years.
The questionnaire length is another possible reason for the relatively low response rate. Although the core NuHISS for physicians had only 32 items, the full questionnaire had 17 background questions, 41 usability-focused items, a list of 17 most urgent EHR development needs to select from, a list of 15 best functioning EHR features to select from, and a 9-item module measuring HIS-related well-being. For manager-level physicians, there was an additional 11-item module measuring HIS support for management.
All the questionnaire items related to IS success were not included in the validated scale. Our questions on system integration and proficiency of use were not included because of a different scale. In the exploratory factor analysis (), our items measuring learnability (Learning to use the EHR system does not require a lot of training), recovery from errors (It is easy to correct mistakes [such as entry errors, ending up in the wrong screen, changing incorrect selections, etc]), and decision support quality (The reminders, alerts and warnings provided by the system are useful and are adequate) loaded on the ease of use factor but did not qualify there in the validation. In the exploratory factor analysis, our items Diagnostic imaging results are easily available on a regional level and Laboratory results are easily available and are logically presented on a regional level loaded on cross-organizational collaboration factor but did not qualify for the validated scale. In the exploratory factor analysis, our questions If I have problems with the system I can easily get help and Use of EHR systems frequently takes my attention away from the patient loaded on technical quality factor but did not qualify into the validated scale. In the exploratory factor analysis, our item I know to whom and how I can send feedback on the system, if I so wish loaded on the feedback factor but did not qualify into the validated scale. All these questions reflect aspects of usability that may still be important to keep in the full questionnaire.
Although the functionalities and information needed by doctors in daily patient care remain relatively constant, development of technologies may enhance some functionalities (ie, artificial intelligence-assisted decision support and improved personalization possibilities). These developments should also be considered in the full questionnaire for physicians in future. In addition, further development of some of the measures in the information quality factor may be called for. In the exploratory factor analysis, there was an eighth factor, which we named Business to Client collaboration. This did not qualify as an individual factor in the validation, but combining the items with the information quality factor provided a satisfactory result. The eighth factor may become valid, if some items are added or rephrased.
To our knowledge, Finland is the first country to have administered regular national monitoring of usability of HISs from the viewpoint of end-user experiences. The introduced tool—NuHISS for physicians—offers a valid measure for monitoring the long-term development of HISs on a large scale. The scale is highly adoptable in other countries—it has already been used in Iceland, Denmark, and Germany in 2018. The relative importance of items needs to be assessed against national eHealth policy goals and complemented with items that have remained outside the NuHISS from the questionnaire when appropriate. Development of HIS functionalities calls for further development of the scale, especially within the information quality domain. Similar national-level scales have been developed in Finland for nurses and social workers, based on the physician scale. First data collections were conducted from 2017 to 2018. Validation of these in due course will show generalizability of the physician scale across professional groups.
This study was funded by the Finnish Work Environment Fund (project 116104), the Strategic Research Council at the Academy of Finland (project 303607), and the Ministry of Social Affairs and Health (project 112241).
Conflicts of Interest
Multimedia Appendix 1
Number of missing values in each item and missing patterns.PDF File (Adobe PDF File), 456KB
Multimedia Appendix 2
Comparison of National Usability-Focused HIS-Scale and Information System Success model dimensions and items.PDF File (Adobe PDF File), 34KB
Multimedia Appendix 3
Exploratory factor analysis factor matrix with factor loadings.PDF File (Adobe PDF File), 64KB
- Roman LC, Ancker J, Johnson S, Senathirajah Y. Navigation in the electronic health record: a review of the safety and usability literature. J Biomed Inform 2017 Dec;67:69-79 [FREE Full text] [CrossRef] [Medline]
- European Commission. 2012. eHealth Action Plan 2012-2020 - Innovative healthcare for the 21st century URL: https://ec.europa.eu/digital-single-market/en/news/ehealth-action-plan-2012-2020-innovative-healthcare-21st-century [accessed 2019-03-08] [WebCite Cache]
- Sheikh A, Sood HS, Bates D. Leveraging health information technology to achieve the "triple aim" of healthcare reform. J Am Med Inform Assoc 2015 Jul;22(4):849-856 [FREE Full text] [CrossRef] [Medline]
- Jones SS, Heaton P, Rudin R, Schneider E. Unraveling the IT productivity paradox--lessons for health care. N Engl J Med 2012 Jun 14;366(24):2243-2245. [CrossRef] [Medline]
- Kaipio J, Lääveri T, Hyppönen H, Vainiomäki S, Reponen J, Kushniruk A, et al. Usability problems do not heal by themselves: national survey on physicians' experiences with EHRs in Finland. Int J Med Inform 2017 Dec;97:266-281 [FREE Full text] [CrossRef] [Medline]
- Heponiemi T, Hyppönen H, Vehko T, Kujala S, Aalto AM, Vänskä J, et al. Finnish physicians' stress related to information systems keeps increasing: a longitudinal three-wave survey study. BMC Med Inform Decis Mak 2017 Oct 17;17(1):147 [FREE Full text] [CrossRef] [Medline]
- Heponiemi T, Hyppönen H, Kujala S, Aalto AM, Vehko T, Vänskä J, et al. Predictors of physicians' stress related to information systems: a nine-year follow-up survey study. BMC Health Serv Res 2018 Dec 13;18(1):284. [CrossRef] [Medline]
- Hyppönen H, Lumme S, Reponen J, Vänskä J, Kaipio J, Heponiemi T, et al. Health information exchange in Finland: Usage of different access types and predictors of paper use. Int J Med Inform 2019 Feb;122:1-6. [CrossRef] [Medline]
- Hornbaek K. Current practice in measuring usability: challenges to usability studies and research. Int J Hum Comp Stud 2006;64:102. [CrossRef]
- Scott RE, Saeed A. ResearchGate. 2008. Global eHealth - Measuring Outcomes: Why, What, and How: A Report Commissioned by the World Health Organization's Global Observatory for eHealth URL: https://www.researchgate.net/publication/237279666_Global_eHealth_-_Measuring_Outcomes_Why_What_and_How_A_Report_Commissioned_by_the _World_Health_Organization's_Global_Observatory_for_eHealth [accessed 2019-03-12] [WebCite Cache]
- Nielsen J. Usability Engineering. Boston: Academic Press; 1993.
- Kurosu M. Revised: What Have We Learnt About Usability Since 1998? Human-Computer Interaction: Design and Evaluation Cham. London: Academic Press; 2015.
- International Organization for Standardization. 2015. ISO 9241-210:2010: Ergonomics of human-system interaction -- Part 210: Human-centred design for interactive systems URL: https://www.iso.org/standard/52075.html [accessed 2019-03-08] [WebCite Cache]
- Bevan N. Usability is quality of use. Adv Hum Fact Ergon 1995;20:349-354. [CrossRef]
- Organisation for Economic Co-operation and Development. 2015. OECD Recommendation on Health Data Governance URL: http://www.oecd.org/els/health-systems/health-data-governance.htm [accessed 2019-03-08] [WebCite Cache]
- European Commission. 2017. Multi annual work programme (MWP) 2018-2021 URL: https://ec.europa.eu/health/sites/health/files/ehealth/docs/ev_20170509_co01_en.pdf [accessed 2019-03-08] [WebCite Cache]
- Organisation for Economic Co-operation and Development. 2015. Draft OECD Guide for Measuring ICTs in the Health Sector URL: http://www.oecd.org/health/health-systems/Draft-oecd-guide-to-measuring-icts-in-the-health-sector.pdf [accessed 2019-03-08] [WebCite Cache]
- Adler-Milstein J, Ronchi E, Cohen G, Winn LA, Jha AK. Benchmarking health IT among OECD countries: better data for better policy. J Am Med Inform Assoc 2014;21(1):111-116 [FREE Full text] [CrossRef] [Medline]
- European Commission. 2014. European Hospital Survey: Benchmarking Deployment of e-Health Services (2012-2013) URL: https://ec.europa.eu/digital-single-market/en/news/european-hospital-survey-benchmarking-deployment-ehealth-services-2012-2013 [accessed 2019-03-13] [WebCite Cache]
- Canada Health Infoway. 2006. Canada Health Infoway Benefits Evaluation Indicators Technical Report URL: https://www.infoway-inforoute.ca/en/ [accessed 2019-03-13] [WebCite Cache]
- Kirakowski J. SUMI Questionnaire. 2019. The use of questionnaire methods for usability assessment, Background Notes on the SUMI Questionnaire 1994 URL: http://sumi.uxp.ie/about/sumipapp.html
- Brooke J. SUS: a “quick and dirty” usability scale. In: Jordan P, Thomas T, Weerdmeester A, editors. Usability Evaluation in Industry. London: Taylor and Francis; 1996.
- Chin J, Diehl V, Norman K. Development of an instrument measuring user satisfaction of the human–computer interface. In: Proceedings of the SIGCHI Conference on Human Factors in Computing Systems. 1988 Presented at: CHI'88; May 15-19, 1988; Washington, DC, USA p. 213-218.
- Codagnone C, Lupiañez-Villanueva F. European Commission. 2014. Benchmarking Deployment of eHealth among General Practitioners (2013) URL: https://ec.europa.eu/digital-single-market/en/news/benchmarking-deployment-ehealth-among-general-practitioners-2013-smart-20110033 [accessed 2019-03-13] [WebCite Cache]
- DeLone W, McLean E. Information Systems Success: The Quest for the Dependent Variable. Inf Syst Res 1992;3(1):60-95 [FREE Full text] [CrossRef]
- DeLone WH, McLean ER. The DeLone and McLean Model of Information Systems Success: a ten-year update. J Man Inf Syst 2003;19:9-30. [CrossRef]
- Decima H. Canada Health Infoway. 2012. Canadian Views on Electronic Health Records URL: https://www.infoway-inforoute.ca/en/component/edocman/1687-harris-decima-survey-on-electronic-health-records/view-document?Itemid=0 [accessed 2019-03-11] [WebCite Cache]
- Canada Health Infoway. 2012. Canada Health Infoway Benefits Evaluation Indicators Technical Report Version 2.0 URL: https://www.infoway-inforoute.ca/en/component/edocman/resources/reports/450-benefits-evaluation-indicators-technical-report-version-2-0 [accessed 2019-03-13] [WebCite Cache]
- Lau F, Hagens S, Muttitt S. A proposed benefits evaluation framework for health information systems in Canada. Healthc Q 2007;10(1):112-6-112-8. [Medline]
- Ministry of Social Affairs and Health. 2016. Information to Support Well-Being And Service Renewal URL: http://julkaisut.valtioneuvosto.fi/bitstream/handle/10024/74459/URN_ISBN_978-952-00-3575-4.pdf?sequence=1&isAllowed=y
- Saastamoinen P, Vänskä J, Kaipio J, Hyppönen H, Reponen J, Lääveri T. [Doctors' estimates of patient information systems improved slightly]. Finn Med J 2018;34:1814-1819.
- Maharee-Lawler S, Rodwell J, Noblet A. A step toward a common measure of organizational justice. Psychol Rep 2010 Apr;106(2):407-418. [CrossRef] [Medline]
- Jöreskog KG. Testing structural equation models. In: Bollen KA, Long JS, editors. Testing Structural Equation Models. Thousand Oaks, CA: Sage Publications; 1993:294-316.
- Kelloway EK. Using LISREL for Structural Equation Modeling: A Researcher's Guide. Thousand Oaks, CA: Sage Publications; 1998.
- Nunnally JC. McGraw-Hill series in psychology. Psychometric theory. New York: McGraw-Hill; 1967.
- Robins JM, Hernan MA, Brumback B. Marginal structural models and causal inference in epidemiology. Epidemiology 2000 Sep;11(5):550-560.
- VanderWeele TJ. Marginal structural models for the estimation of direct and indirect effects. Epidemiology 2000 Jan;20(1):18-26.
- Putnick DL, Bornstein M. Measurement invariance conventions and reporting: the state of the art and future directions for psychological research. Devel Rev 2016;41:71-90.
- Torbjørnsen A, Småstuen MC, Jenum AK, Årsand E, Ribu L. The Service User Technology Acceptability Questionnaire: psychometric evaluation of the Norwegian Version. JMIR Hum Factors 2018 Dec 21;5(4):e10255 [FREE Full text] [CrossRef] [Medline]
- Boß L, Lehr D, Reis D, Vis C, Riper H, Berking M, et al. Reliability and validity of assessing user satisfaction with web-based health interventions. J Med Internet Res 2016 Aug 31;18(8):e234 [FREE Full text] [CrossRef] [Medline]
- Schnall R, Cho H, Liu J. Health Information Technology Usability Evaluation Scale (Health-ITUES) for usability assessment of mobile health technology: validation study. JMIR Mhealth Uhealth 2018 Jan 5;6(1):e4 [FREE Full text] [CrossRef] [Medline]
|AIC: Akaike’s information criterion|
|BIC: Bayesian information criterion|
|CFI: comparative fit index|
|EHR: electronic health record|
|eHealth: electronic health|
|EU: European Union|
|HIE: health information exchange|
|HIS: health information system|
|ICT: information and communication technology|
|IS: information system|
|ISO: International Organization for Standardization|
|IT: information technology|
|MSM: marginal structural model|
|NFI: Normed Fit Index|
|NuHISS: National Usability-Focused HIS-Scale|
|OECD: Organisation for Economic Co-operation and Development|
|PCA: principal components analysis|
|PHR: personal health record|
|QUIS: Questionnaire for User Interaction Satisfaction|
|RMSEA: root mean squared error of approximation|
|SEM: structural equation modeling|
|SRMR: Standardized Root Mean square Residual|
|SUMI: Software Usability Measurement Inventory|
|SUS: System Usability Scale|
|TLI: Tucker-Lewis Index|
|UX: user experience|
Edited by G Eysenbach; submitted 27.11.18; peer-reviewed by L Roa, I Mircheva; comments to author 30.01.19; accepted 18.02.19; published 16.05.19
©Hannele Hyppönen, Johanna Kaipio, Tarja Heponiemi, Tinja Lääveri, Anna-Mari Aalto, Jukka Vänskä, Marko Elovainio. Originally published in the Journal of Medical Internet Research (http://www.jmir.org), 16.05.2019.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (https://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work, first published in the Journal of Medical Internet Research, is properly cited. The complete bibliographic information, a link to the original publication on http://www.jmir.org/, as well as this copyright and license information must be included.
